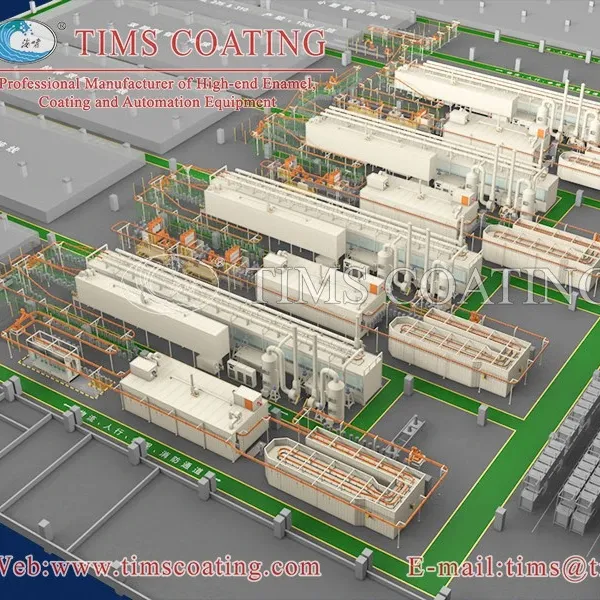

A Seamless System Designed for Maximum ROI.

It is a common myth that a thicker glass lining in a water heater is more durable. In fact, the opposite is often true. An excessively thick enamel coat, often the result of a poorly controlled water heater enamel production line, can be brittle and more prone to cracking under the stress of the tank expanding and contracting with heat. The goal is not thickness, but perfection and uniformity at the optimal thickness. A high-quality water heater enamel production line from TIMS COATING is designed to apply the enamel at the precise thickness specified by the frit manufacturer to achieve the best balance of flexibility and corrosion resistance.

The future of the water heater enamel production line is about data and process verification. At TIMS COATING, we are working on integrating advanced sensors to provide even greater quality assurance. Imagine non-contact sensors that can measure the thickness of the wet enamel film inside the tank in real-time, allowing the robot to make micro-adjustments on the fly. Imagine thermal imaging systems that monitor the tank as it exits the furnace to verify a uniform cure. This move toward a "smart" water heater enamel production line will allow for 100% quality verification on every single unit, transitioning from a process of control to a process of absolute certainty.

Pinholes are microscopic voids in the enamel that can lead to catastrophic corrosion and are a primary quality concern on a water heater enamel production line. They are typically caused by gases escaping from the steel during the high-temperature firing process. A high-quality line from TIMS COATING prevents pinholes in several ways. First, a rigorous pretreatment process creates a perfectly clean surface. Second, the application of a specialized ground coat helps to manage the outgassing from the steel. Finally, a precisely controlled furnace firing curve allows these gases to escape before the glass fully melts and fuses, ensuring a solid, impervious lining.

In a water heater enamel production line, the pretreatment stage is uniquely challenging. Unlike flat parts, the chemicals must fully coat and then fully drain from the inside of a hollow tank. Any trapped liquid ("puddling") can ruin the finish. At TIMS COATING, we solve this by designing our conveyor systems with integrated, programmable tilting and rotating mechanisms. As the tank exits each pretreatment stage, it is automatically tilted at a steep angle and rotated to ensure every last drop of chemical or rinse water drains out. This meticulous attention to the draining process is a critical, behind-the-scenes detail that is essential for a successful water heater enamel production line.
