A Perfectly Uniform Coat for Decades of Corrosion Protection.

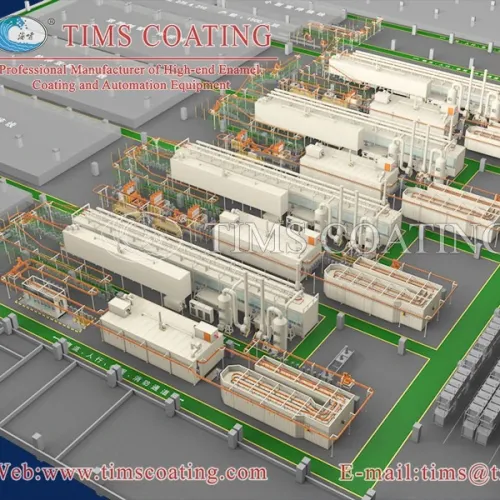

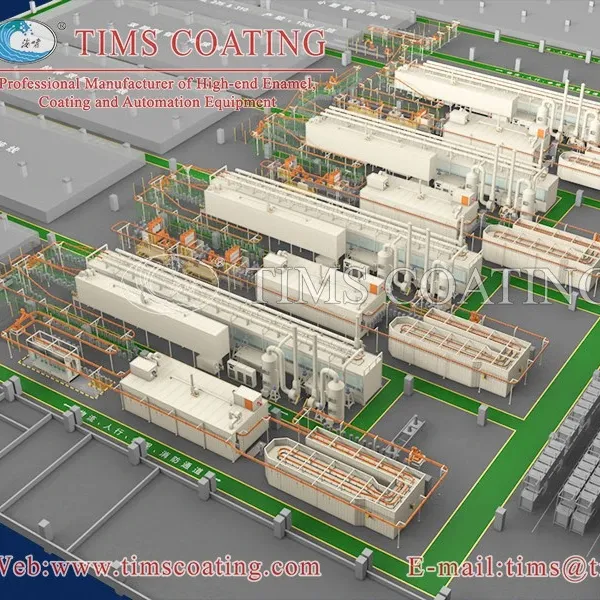

In a water heater enamel production line, the pretreatment stage is uniquely challenging. Unlike flat parts, the chemicals must fully coat and then fully drain from the inside of a hollow tank. Any trapped liquid ("puddling") can ruin the finish. At TIMS COATING, we solve this by designing our conveyor systems with integrated, programmable tilting and rotating mechanisms. As the tank exits each pretreatment stage, it is automatically tilted at a steep angle and rotated to ensure every last drop of chemical or rinse water drains out. This meticulous attention to the draining process is a critical, behind-the-scenes detail that is essential for a successful water heater enamel production line.

The glass lining process, performed on a water heater enamel production line, is a method of fusing a layer of porcelain enamel to the interior of a steel tank. The process begins with meticulous multi-stage pretreatment to clean and etch the interior steel surface. Then, a wet slurry or dry powder of specialized glass frit (enamel) is applied to the interior. The crucial step is firing the tank in a furnace at approximately 850°C (1560°F). This extreme heat melts the glass particles and fuses them to the steel, creating a seamless, non-porous, and highly corrosion-resistant layer. This glass lining is what protects the tank from constant contact with hot water, giving the water heater its long service life.

It is a common myth that a thicker glass lining in a water heater is more durable. In fact, the opposite is often true. An excessively thick enamel coat, often the result of a poorly controlled water heater enamel production line, can be brittle and more prone to cracking under the stress of the tank expanding and contracting with heat. The goal is not thickness, but perfection and uniformity at the optimal thickness. A high-quality water heater enamel production line from TIMS COATING is designed to apply the enamel at the precise thickness specified by the frit manufacturer to achieve the best balance of flexibility and corrosion resistance.

An anode rod is a "sacrificial" metal rod installed in an enameled water heater tank. It is designed to corrode away before the steel tank does, offering a secondary line of defense. However, its effectiveness depends on the quality of the finish from the water heater enamel production line. In a perfectly enameled tank with no pinholes, the anode rod corrodes very slowly. If the enamel lining has defects, the anode rod will be consumed much more quickly as it works to protect the exposed steel. Therefore, a superior finish from a high-quality water heater enamel production line extends the life of not just the tank, but the anode rod as well.
