Every Stage, Perfectly Synchronized for Optimal Quality.

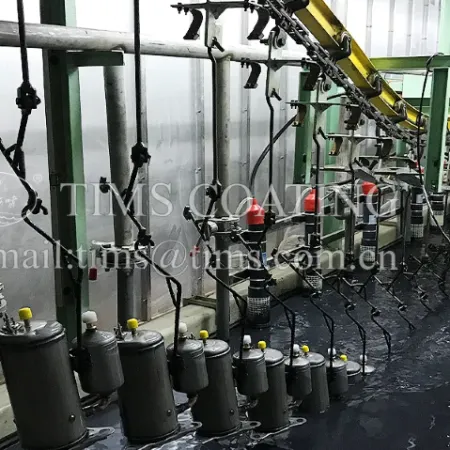

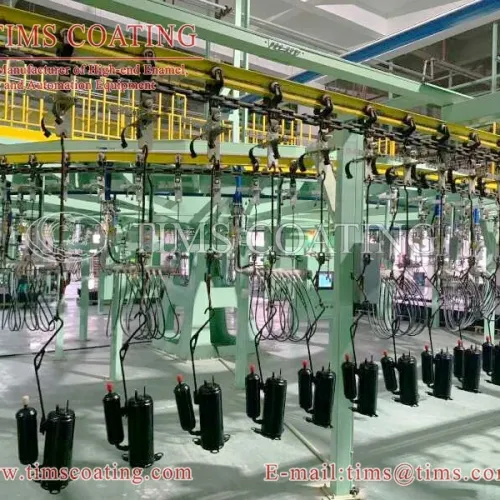

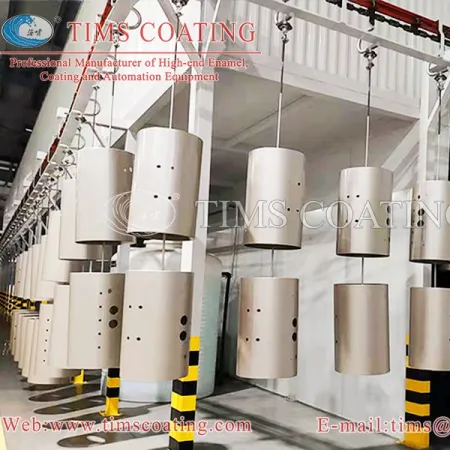

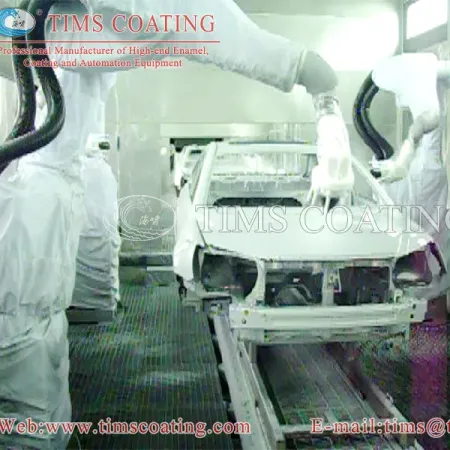

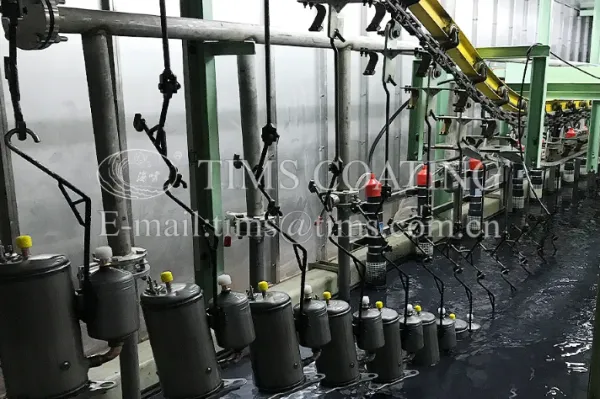

The process flow of an electrophoresis production line is a highly controlled, sequential journey. It begins with loading parts onto a conveyor system. The parts then enter a multi-stage pretreatment tunnel, where they are sprayed or dipped in a series of cleaning, rinsing, and conversion coating tanks. After pretreatment, they enter the main E-coat tank, where they are submerged and electrically charged to deposit the paint. Following deposition, the parts go through several post-rinse stages to recover excess paint and ensure a clean surface. Finally, they travel through a large curing oven, where the coating is baked at high temperatures to cross-link and harden into its final durable film, before being unloaded from the line.

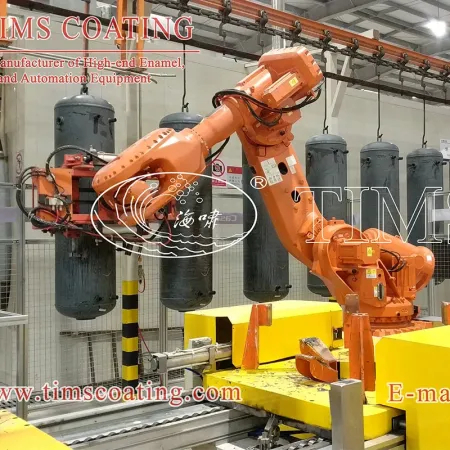

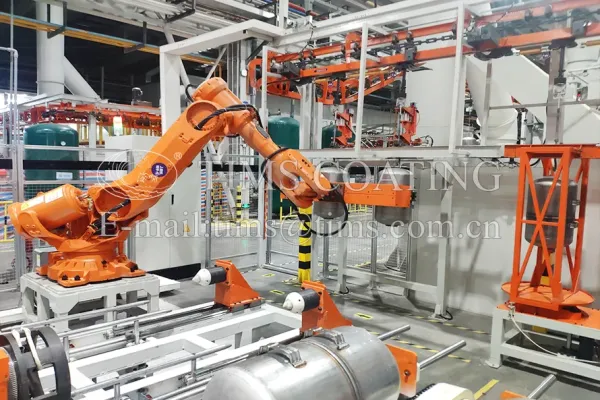

Designing the layout for an electrophoresis production line is a critical step. The first factor is the process flow—the layout must logically follow the sequence of pretreatment, coating, and curing. The second is part size and geometry, which dictates the size of the tanks, the turning radius of the conveyor, and the oven profile. The third factor is throughput, which determines the overall length and speed of the line. Another key consideration is maintenance access, ensuring there is adequate space around all major equipment. Finally, operator ergonomics and safety for loading/unloading zones are paramount. The TIMS engineering team uses 3D modeling to create an optimized layout that balances all these factors for your specific facility.

This is a common and dangerous myth. The final quality of a part is directly dependent on the engineering and process control capabilities of the electrophoresis production line. A lower-cost line might have inconsistent heating in its oven, poor circulation in its E-coat tank, or manual chemical dosing, all of which lead to variations in finish quality and durability. A high-performance line from TIMS features intelligent sensor feedback, automated process control, and advanced designs for components like anode cells and curing ovens. It is this commitment to precision engineering that ensures a TIMS electrophoresis production line delivers a consistently superior finish with maximum uptime and reliability.

The curing oven is the final and critical stage of an electrophoresis production line. Its function is to bake the applied E-coat film, causing the epoxy or acrylic resins to cross-link and form a hard, durable, and corrosion-resistant surface. This requires precise temperature control. If the part is under-cured, the finish will be soft and lack durability. If it's over-cured, it can become brittle and discolored. A modern TIMS curing oven uses multiple zones of control and a combination of infrared and convection heating to ramp the part to the correct temperature and hold it there for the precise amount of time required for a full cure, ensuring maximum performance from the coating.
