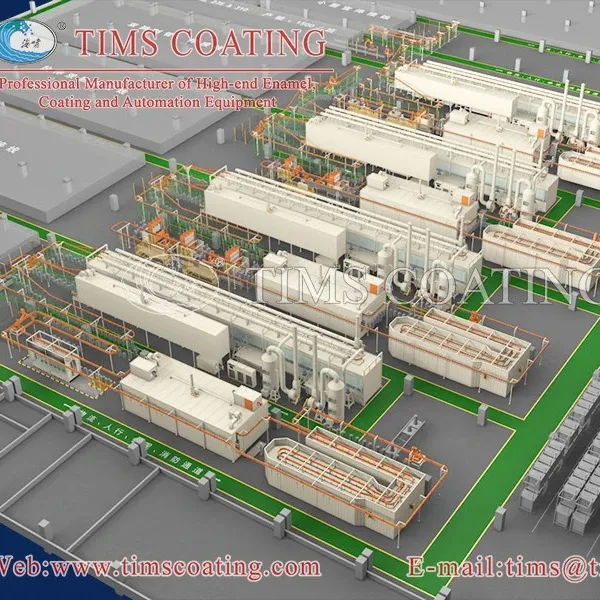

Experience the Certainty of a TIMS COATING Turnkey Solution.

The future of the water heater enamel production line is about data and process verification. At TIMS COATING, we are working on integrating advanced sensors to provide even greater quality assurance. Imagine non-contact sensors that can measure the thickness of the wet enamel film inside the tank in real-time, allowing the robot to make micro-adjustments on the fly. Imagine thermal imaging systems that monitor the tank as it exits the furnace to verify a uniform cure. This move toward a "smart" water heater enamel production line will allow for 100% quality verification on every single unit, transitioning from a process of control to a process of absolute certainty.

Disbonding or "popping off" of the enamel is a catastrophic failure that originates on the water heater enamel production line. The primary cause is an improper bond between the steel and the ground coat. This is almost always due to a failure in the pretreatment stage. If the steel is not perfectly clean and properly etched, the enamel has nothing to grip onto. Another cause can be using the wrong type of steel or an improperly formulated ground coat. A TIMS COATING water heater enamel production line eliminates these risks through a meticulously controlled, multi-stage pretreatment process and deep expertise in the material science of the enameling process.

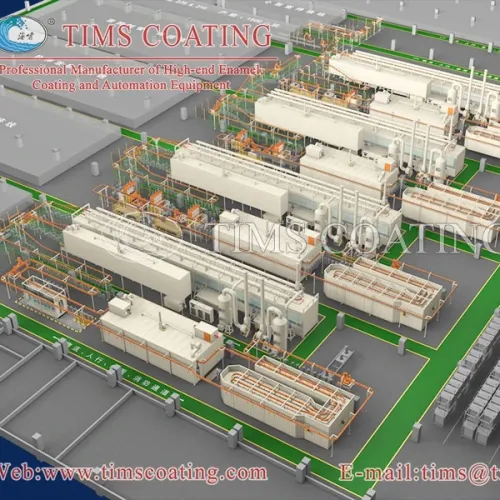

A complete water heater enamel production line is a complex system of integrated equipment. The key components are: 1. A conveyor system with custom tooling to hold and rotate tanks. 2. A multi-stage pretreatment tunnel with tilting stations for draining. 3. A climate-controlled application booth with robotic lances (for wet) or specialized powder applicators (for dry). 4. A drying oven (for wet applications). 5. The critical high-temperature enamel furnace, designed for heating hollow cylinders. 6. A cooling tunnel. 7. A central PLC-based control system to synchronize and manage the entire water heater enamel production line.

Pinholes are microscopic voids in the enamel that can lead to catastrophic corrosion and are a primary quality concern on a water heater enamel production line. They are typically caused by gases escaping from the steel during the high-temperature firing process. A high-quality line from TIMS COATING prevents pinholes in several ways. First, a rigorous pretreatment process creates a perfectly clean surface. Second, the application of a specialized ground coat helps to manage the outgassing from the steel. Finally, a precisely controlled furnace firing curve allows these gases to escape before the glass fully melts and fuses, ensuring a solid, impervious lining.
