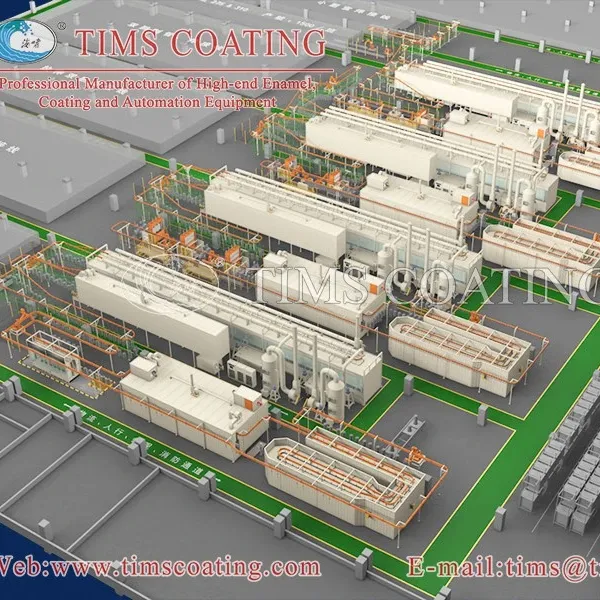

Reduce Warranty Claims and Increase Customer Satisfaction.

The future of the water heater enamel production line is about data and process verification. At TIMS COATING, we are working on integrating advanced sensors to provide even greater quality assurance. Imagine non-contact sensors that can measure the thickness of the wet enamel film inside the tank in real-time, allowing the robot to make micro-adjustments on the fly. Imagine thermal imaging systems that monitor the tank as it exits the furnace to verify a uniform cure. This move toward a "smart" water heater enamel production line will allow for 100% quality verification on every single unit, transitioning from a process of control to a process of absolute certainty.

The glass lining process, performed on a water heater enamel production line, is a method of fusing a layer of porcelain enamel to the interior of a steel tank. The process begins with meticulous multi-stage pretreatment to clean and etch the interior steel surface. Then, a wet slurry or dry powder of specialized glass frit (enamel) is applied to the interior. The crucial step is firing the tank in a furnace at approximately 850°C (1560°F). This extreme heat melts the glass particles and fuses them to the steel, creating a seamless, non-porous, and highly corrosion-resistant layer. This glass lining is what protects the tank from constant contact with hot water, giving the water heater its long service life.

Disbonding or "popping off" of the enamel is a catastrophic failure that originates on the water heater enamel production line. The primary cause is an improper bond between the steel and the ground coat. This is almost always due to a failure in the pretreatment stage. If the steel is not perfectly clean and properly etched, the enamel has nothing to grip onto. Another cause can be using the wrong type of steel or an improperly formulated ground coat. A TIMS COATING water heater enamel production line eliminates these risks through a meticulously controlled, multi-stage pretreatment process and deep expertise in the material science of the enameling process.

In a water heater enamel production line, the pretreatment stage is uniquely challenging. Unlike flat parts, the chemicals must fully coat and then fully drain from the inside of a hollow tank. Any trapped liquid ("puddling") can ruin the finish. At TIMS COATING, we solve this by designing our conveyor systems with integrated, programmable tilting and rotating mechanisms. As the tank exits each pretreatment stage, it is automatically tilted at a steep angle and rotated to ensure every last drop of chemical or rinse water drains out. This meticulous attention to the draining process is a critical, behind-the-scenes detail that is essential for a successful water heater enamel production line.
